LED HEADLIGHT HD STYLE 7-INCH BOTTOM MOUNTING
LED HEADLIGHT HD STYLE 7-INCH BOTTOM MOUNTING
Eye of the Rider! Who can resist a Highsider 7-inch LED headlight like the HD Style Type 3? If you're looking for an authentic power headlight with its own innovative style, then this headlight with parking light function and round clear lens is a great choice.

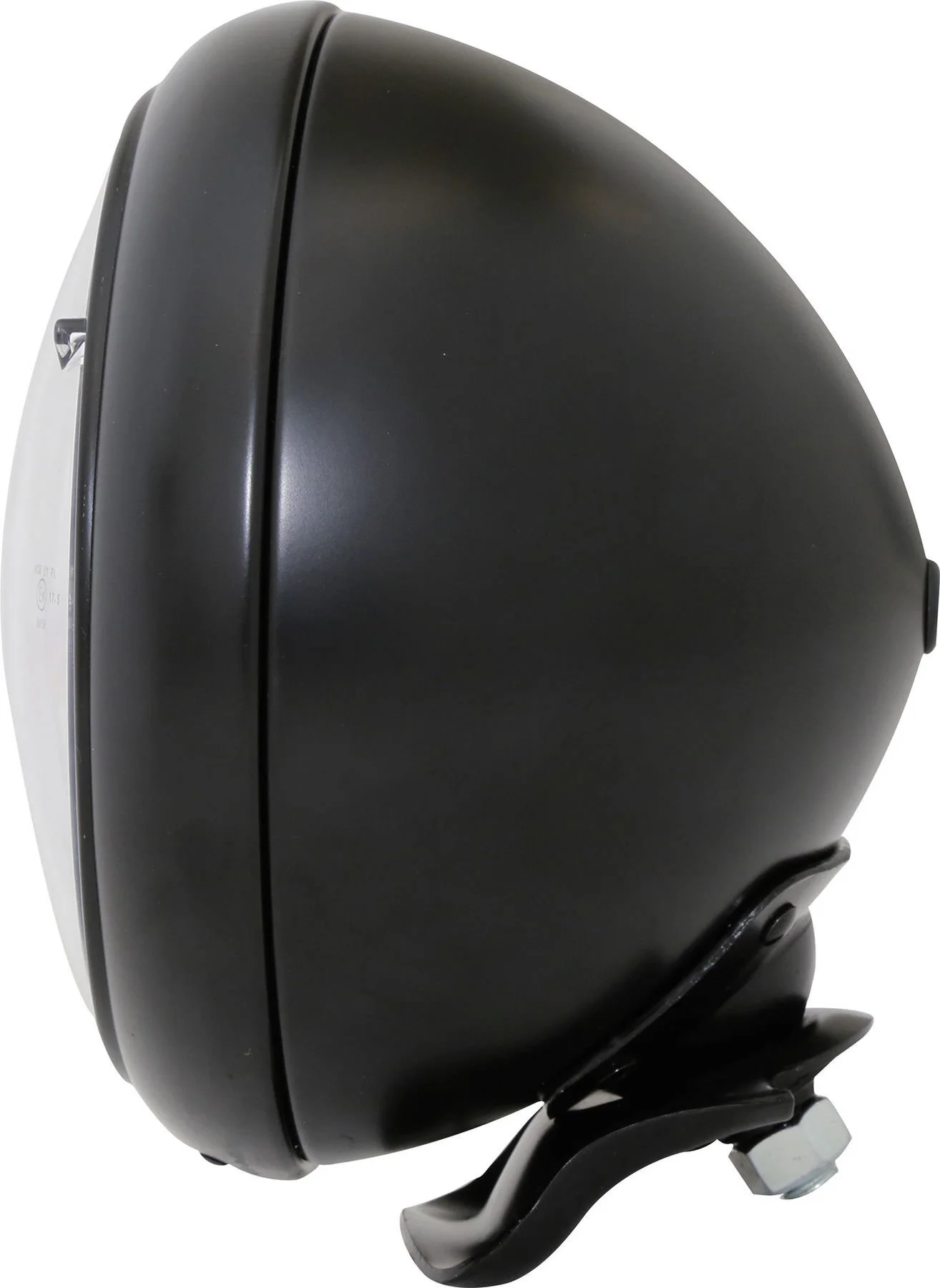

The bottom-mount metal housing and the trim are matt black. They look great with the chromed beam unit. It goes without saying that this headlight is E-approved.
Dimensions: Headlight:
Diameter: 190 mm
Depth: 160 mm
Centre of mounting hole to rear housing: approx. 90 mm
Bottom mount
Further details:
Terminals on the reflector in the headlight housing:
Black cable = Earth (-)
Red cable = Low beam (+), Power rating: 18 W at 12 V/17 W at 24 V, approx. 1132 lumens.
White cable = High beam (+), Power rating: 32 W at 12 V/30 W at 24 V, approx. 1770 lumens.
Brown cable = parking light (+), Power rating: 0.7 W at 12 V/1.6 W at 24 V.
In the box: 1 headlight, incl. mating connector (cable connector) with 210 mm cable, for H4 halogen bulbs, terminals:
Green cable = Earth (-)
Blue cable = High beam (+)
White cable = Low beam (+)
