LED HEADLIGHT INCL. CORNERING LIGHT BRITISH Side Mountings
LED HEADLIGHT INCL. CORNERING LIGHT BRITISH Side Mountings
The *Type 8*. Equipped with a static corning light, which is automatically activated when your motorcycle tilts. That means the headlight illuminates a considerably bigger area, so you can see more! Complete with correct daytime running light activation without the need for any additional control boxes or switches.
The Highsider *Type 8* LED headlight also has a striking design, which is typical of Highsider and will give your motorbike a fantastic look. This headlight is E-approved.
Two ellipsoid lenses in combination with powerful LEDs deliver a very powerful low and high-beam light
Metal housing with high-quality workmanship
Dimensions:
Diameter (and also distance between holes): 190 mm
Depth: 140 mm
Distance fastening holes - housing closure: 80 mm
Headlight unit dia.: 178 mm
Attachment: side M8 x 1.25

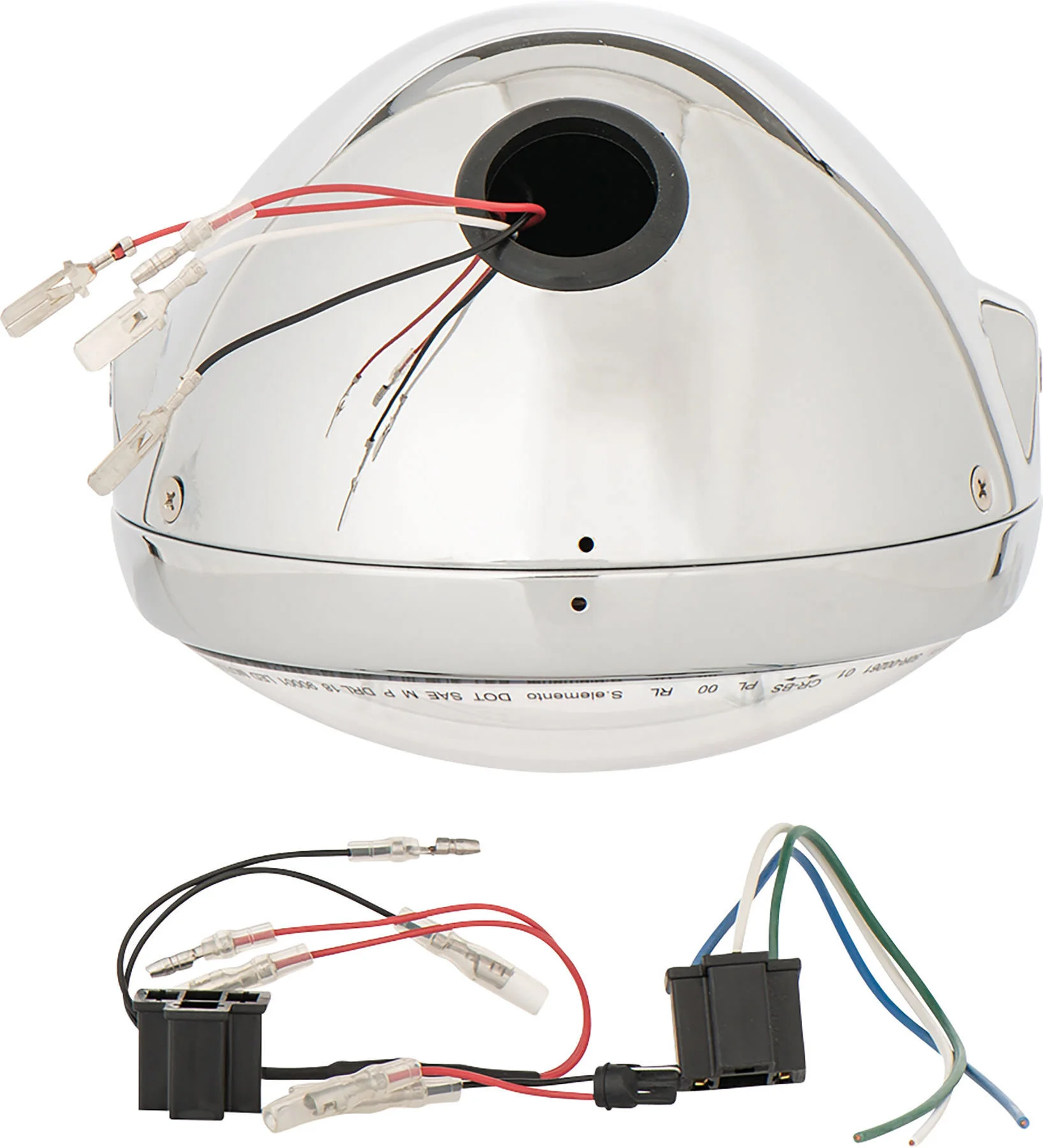

Connections:
Power consumption: 3-pin connector
Red cable = low beam (+)
White cable = high beam (+)
Black cable = earth ()
Separate cable (snap connector):
Red cable = LED position light (+)
Comprises: 1 unit
Please note:
To switch from daytime running light to low beam headlight, you simply press the high-beam/headlight flasher switch briefly (approx. 1 second). Release the switch as soon as low beam switches on. The headlight will then stay on low beam.
