Certification for BMW K75 K100 K1100 CNC Subframe modification & Suspension Platform
Certification for BMW K75 K100 K1100 CNC Subframe modification & Suspension Platform
Must be built in our workshop to be legal on roads.

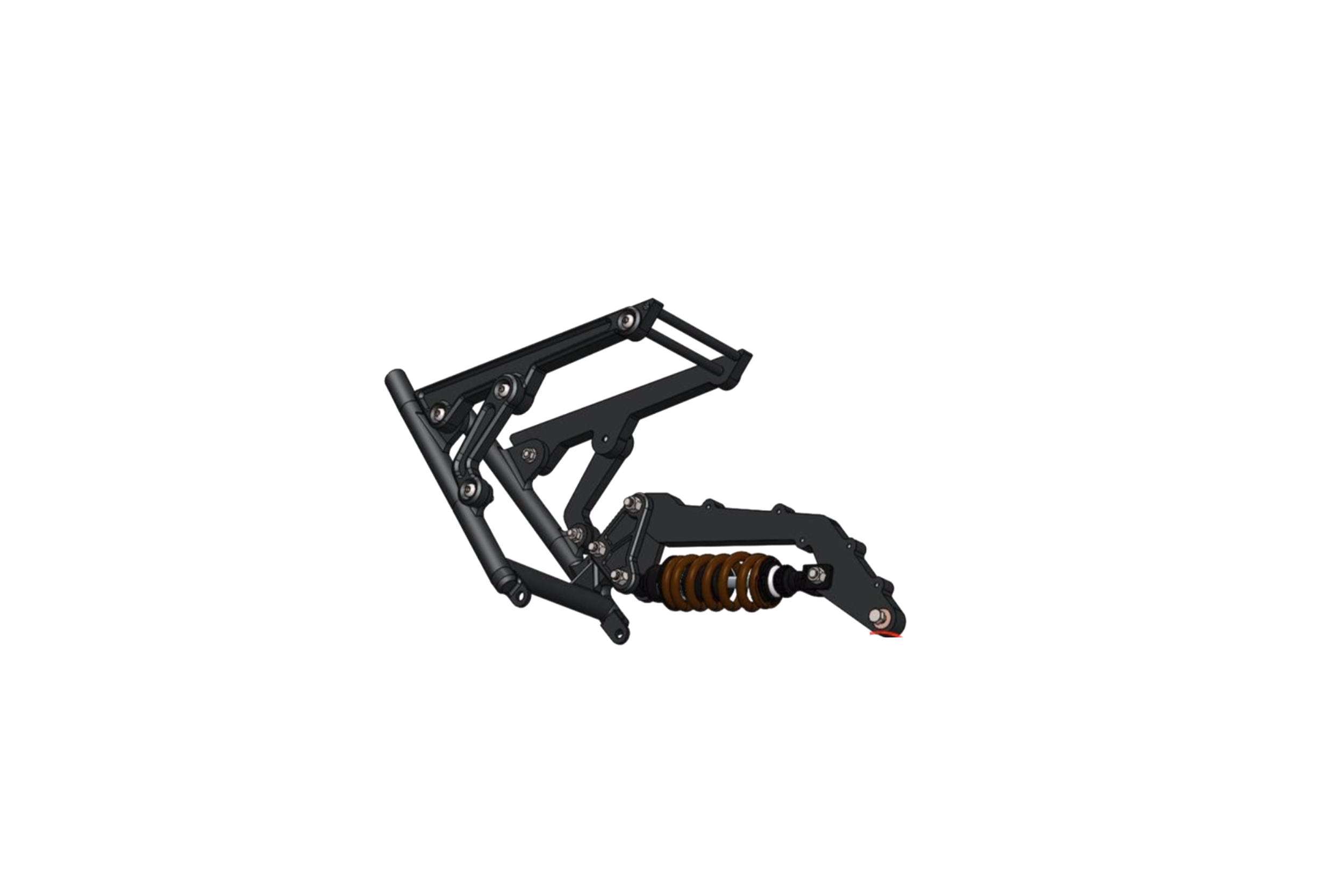

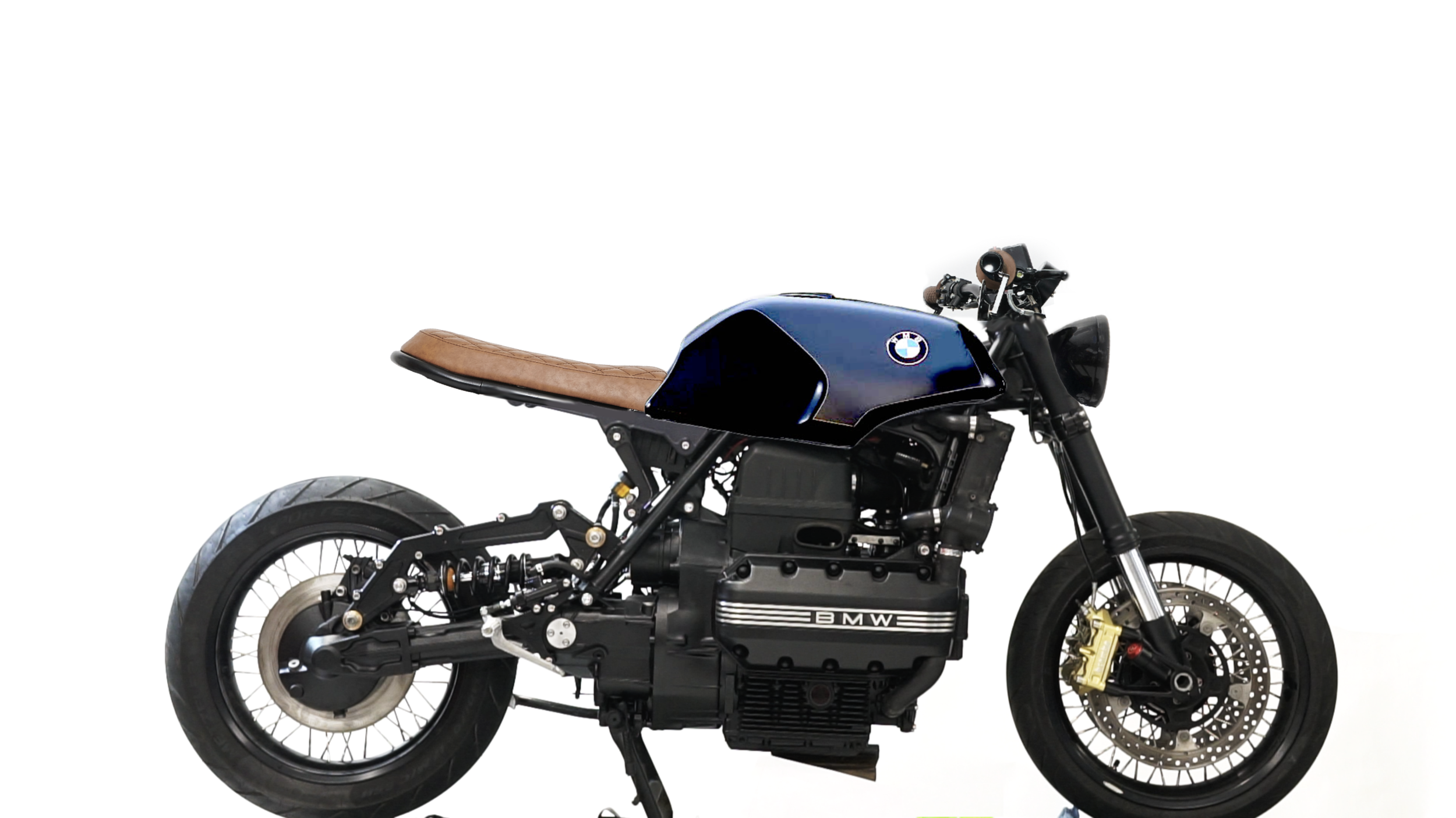

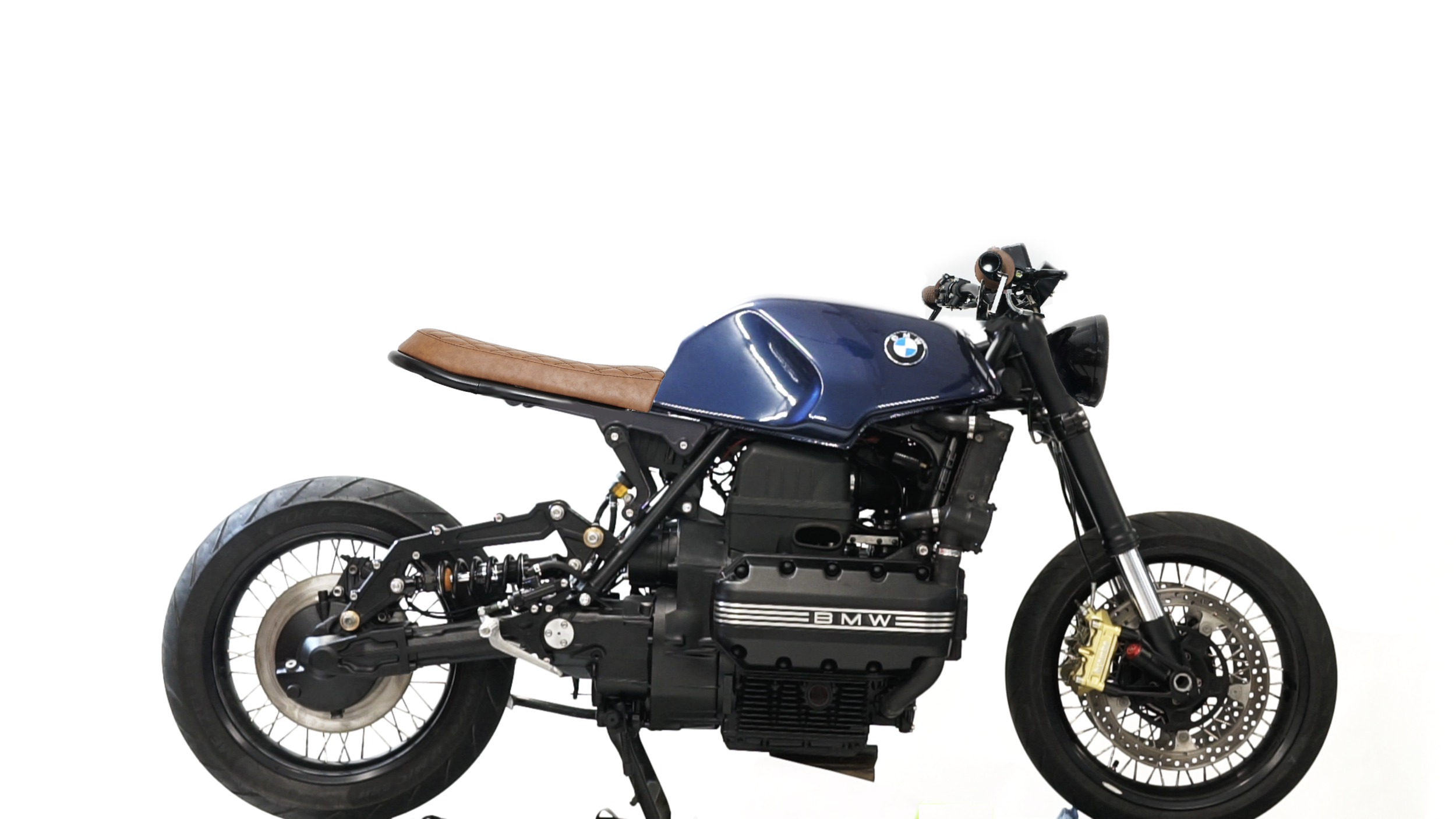

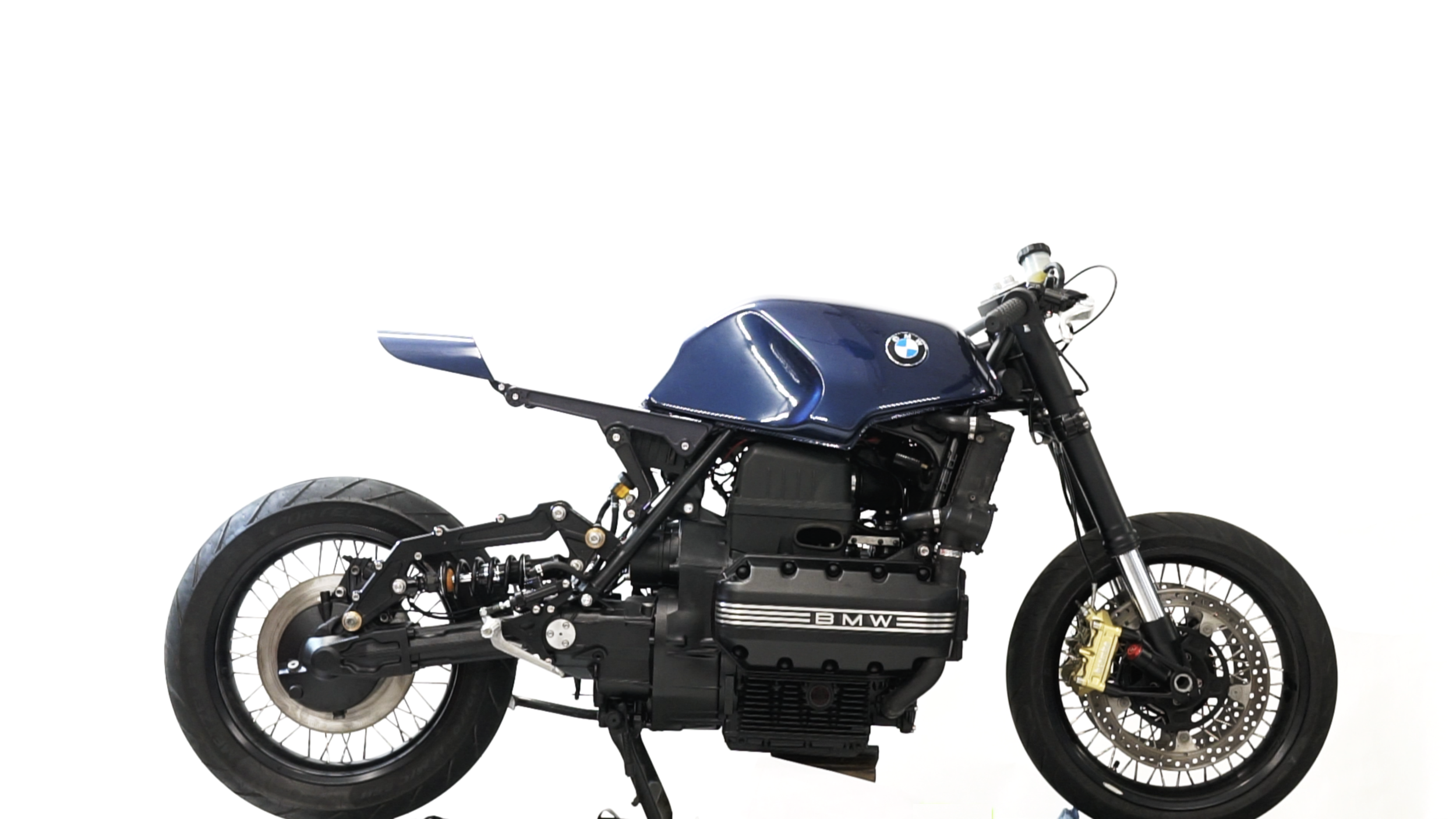

Conversion kit for BMW K-series
All parts in this kit are approved and must be installed in our workshop.
-CNC rear shock platform kit. CHF960.00

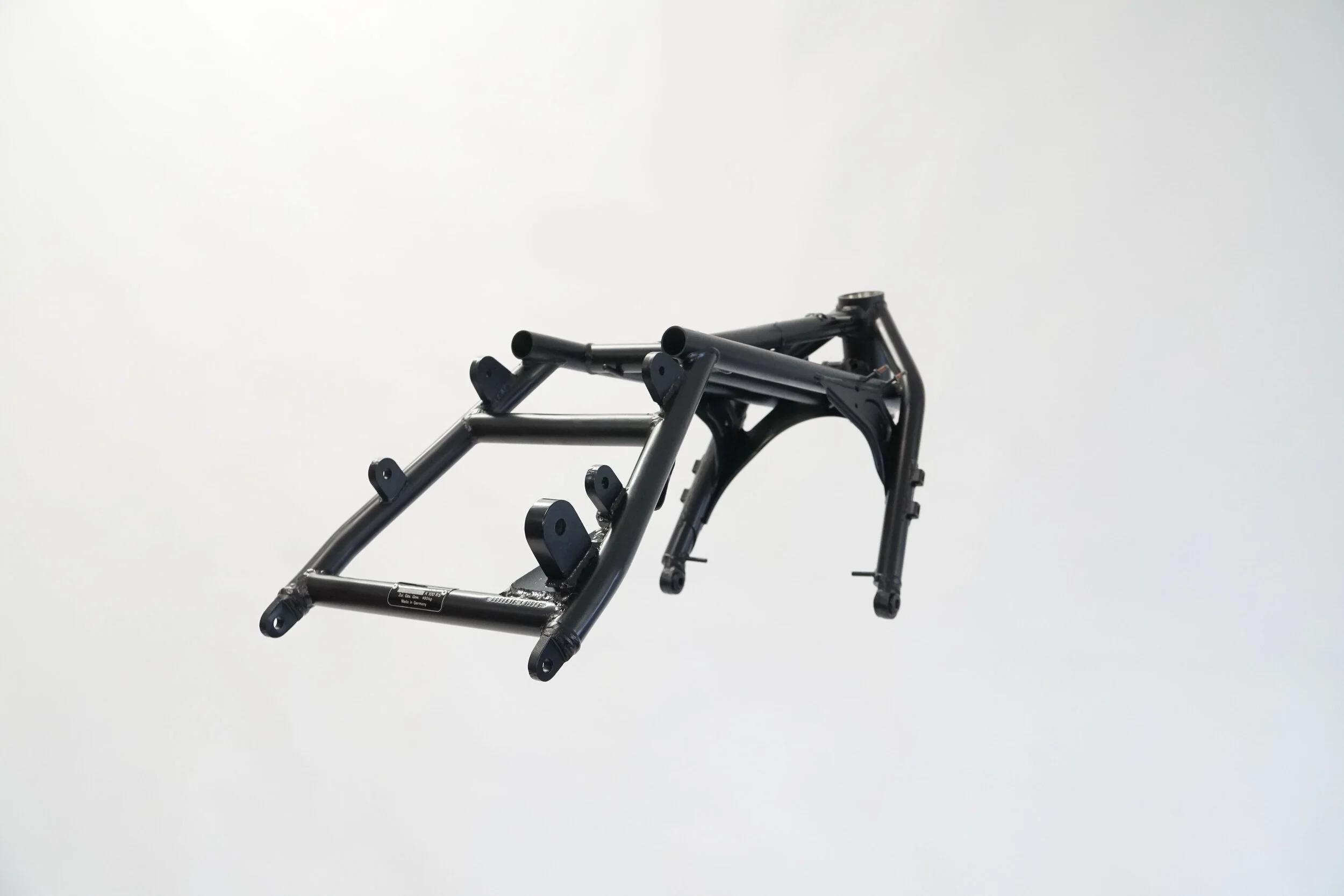

-CNC rear frame kit with cafe racer seat cover CHF689.00

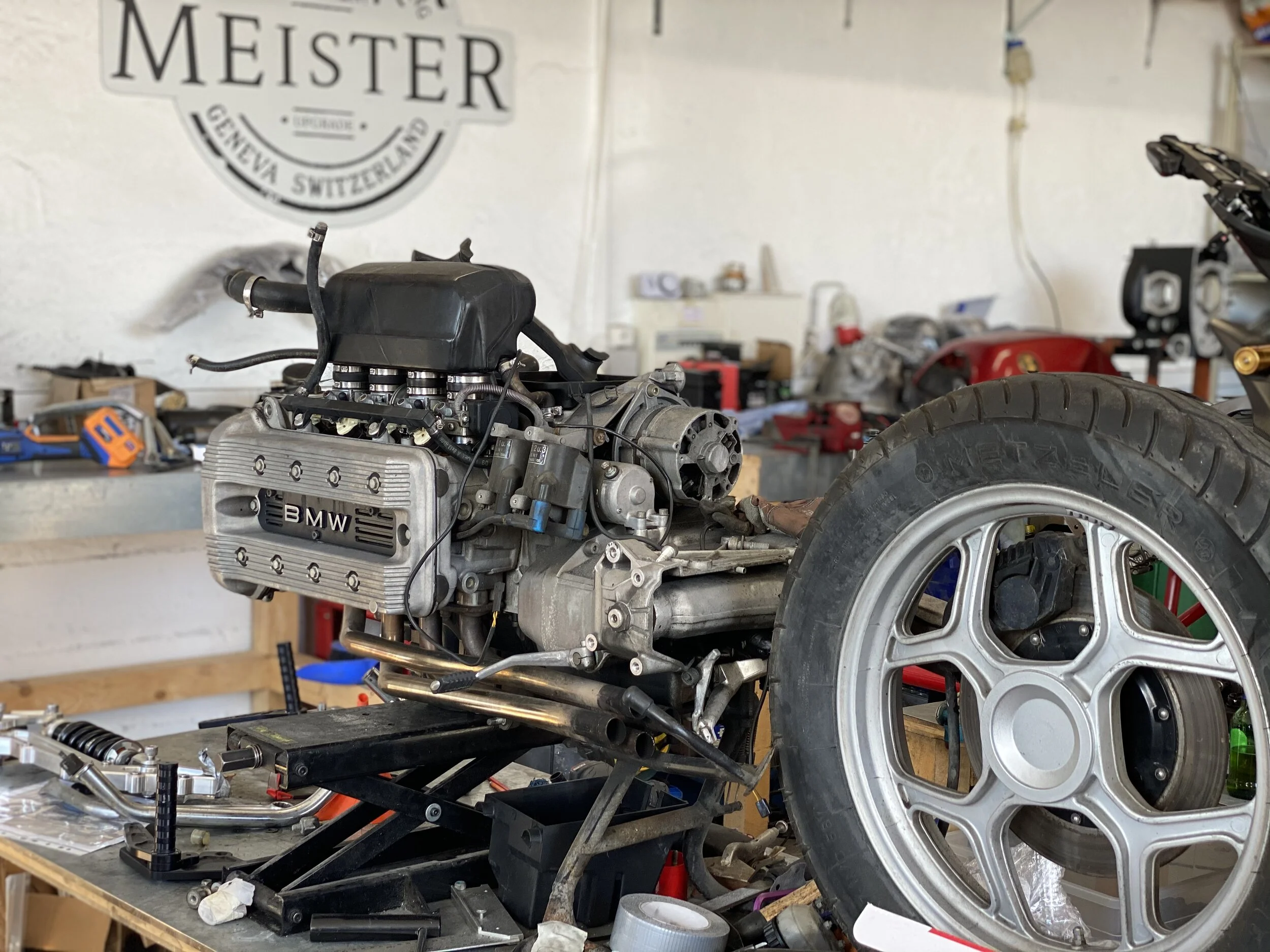

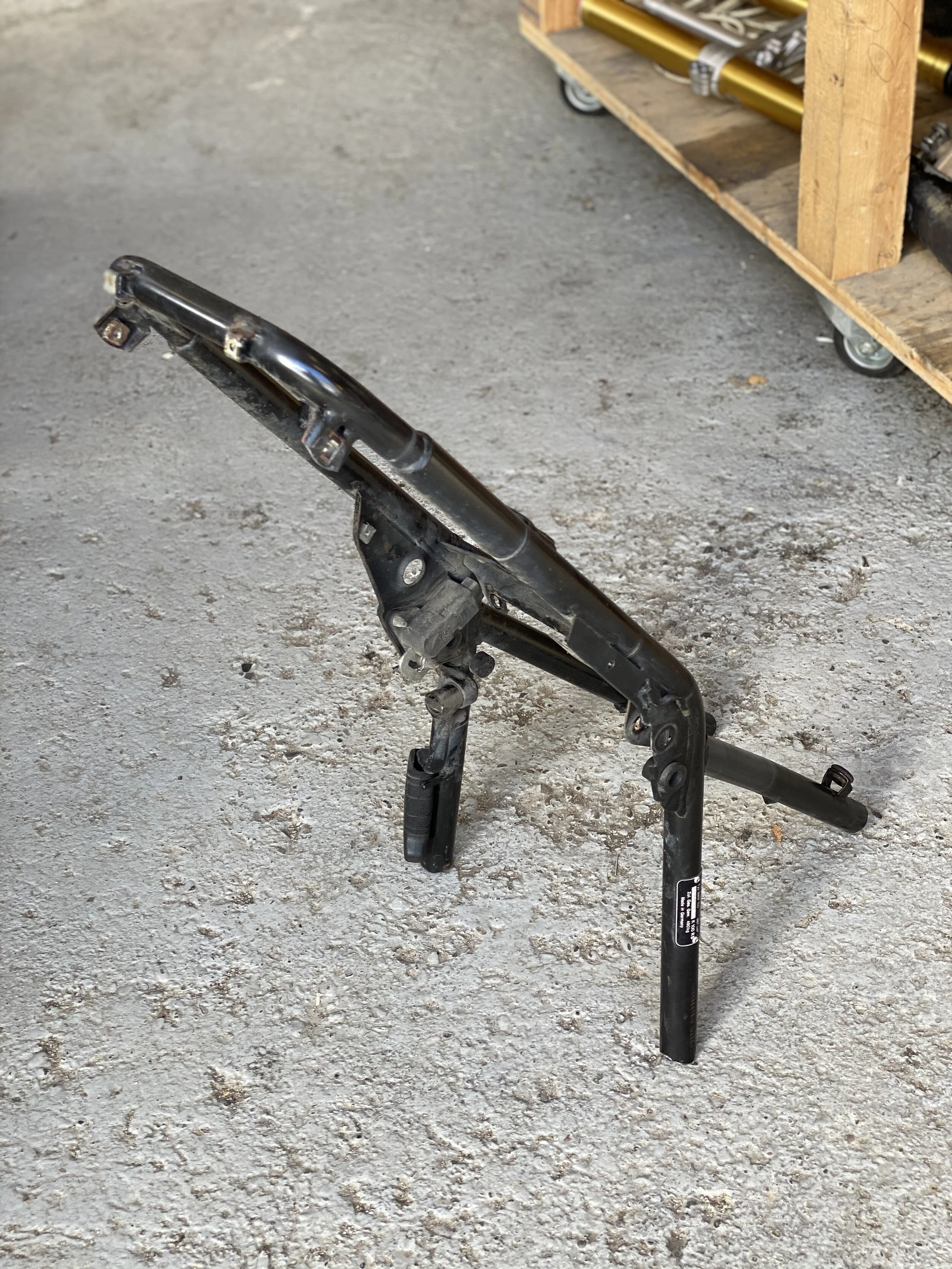

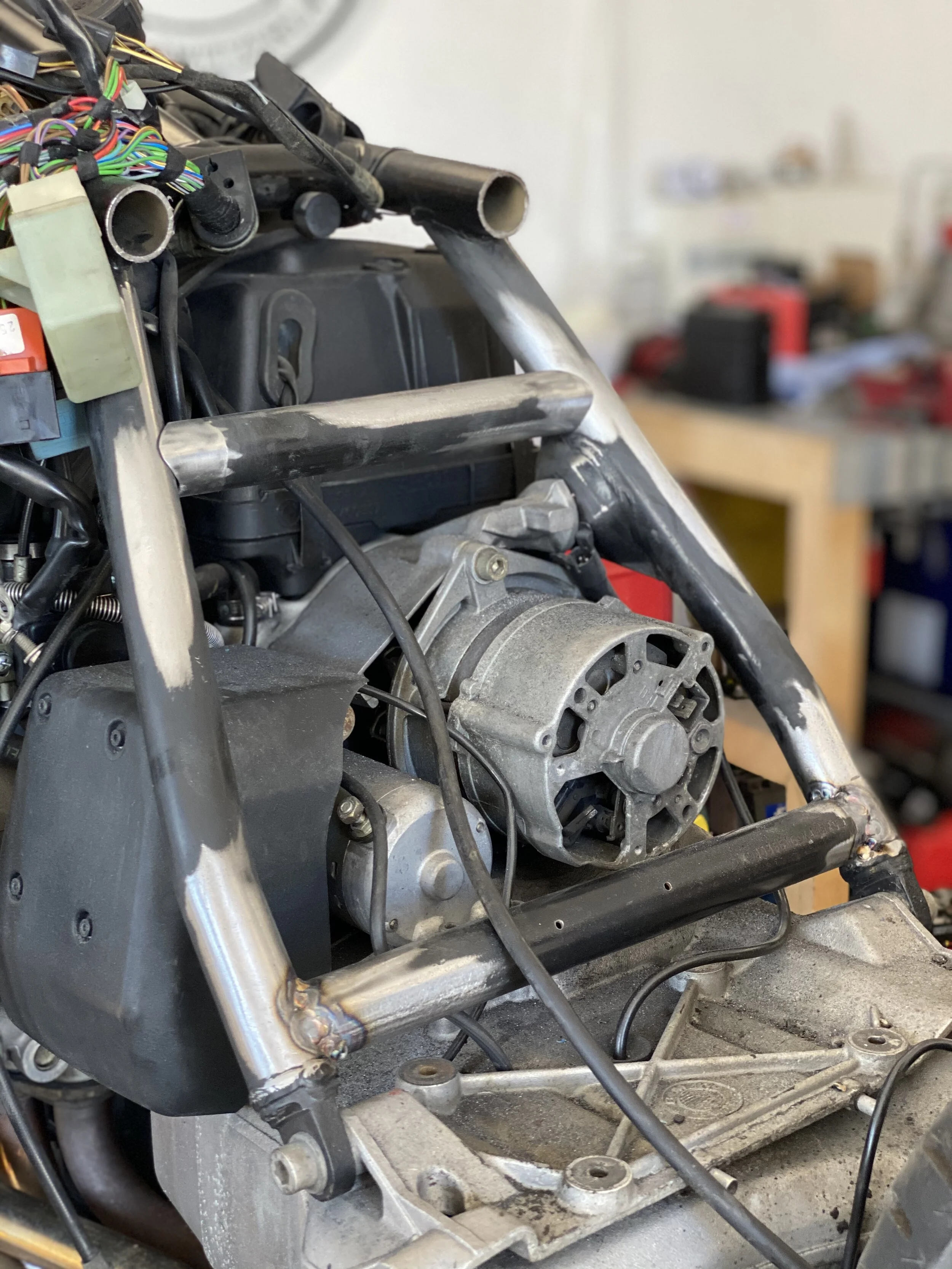

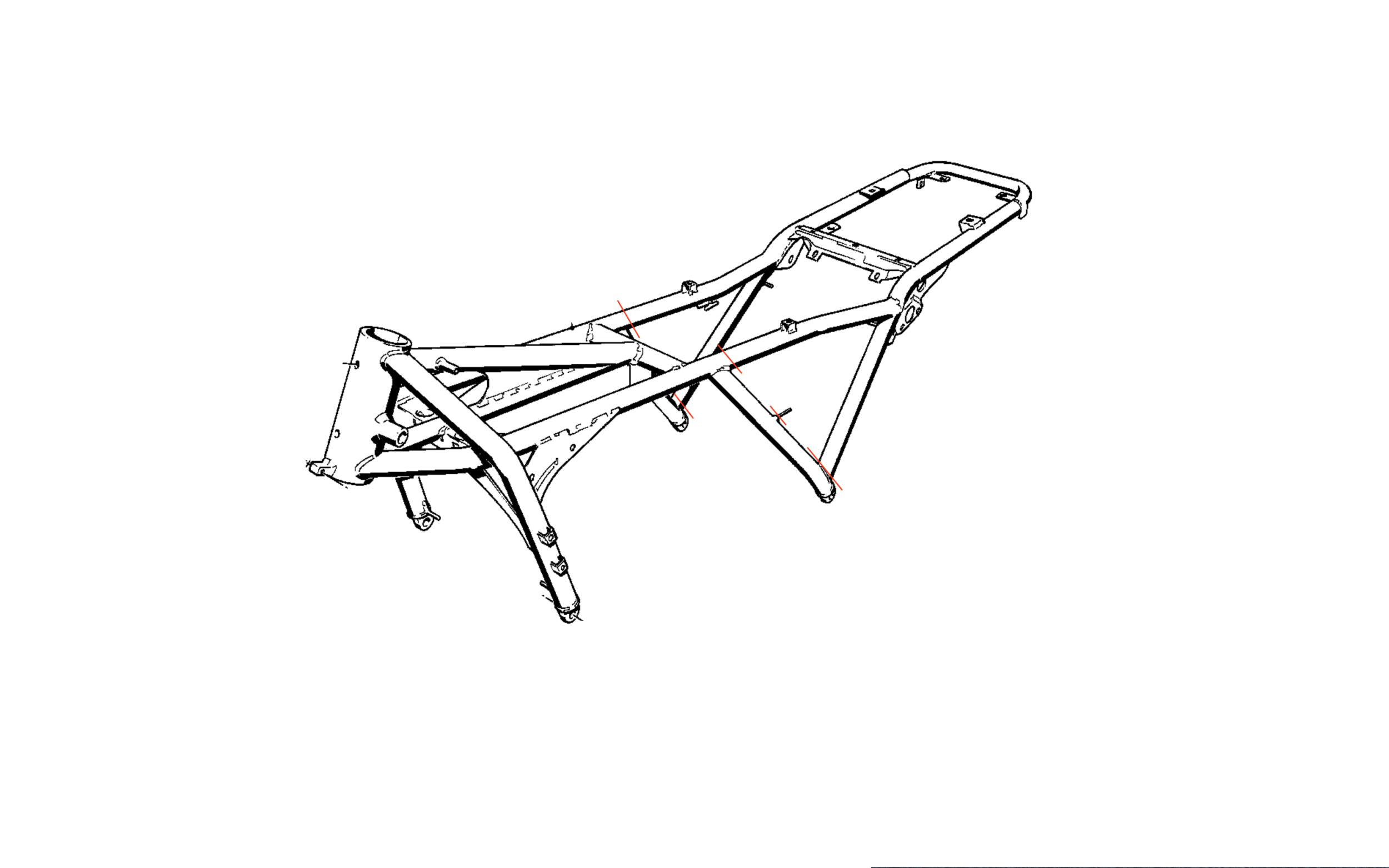

-Chassis modification (has to be done in our workshop) CHF1500.-

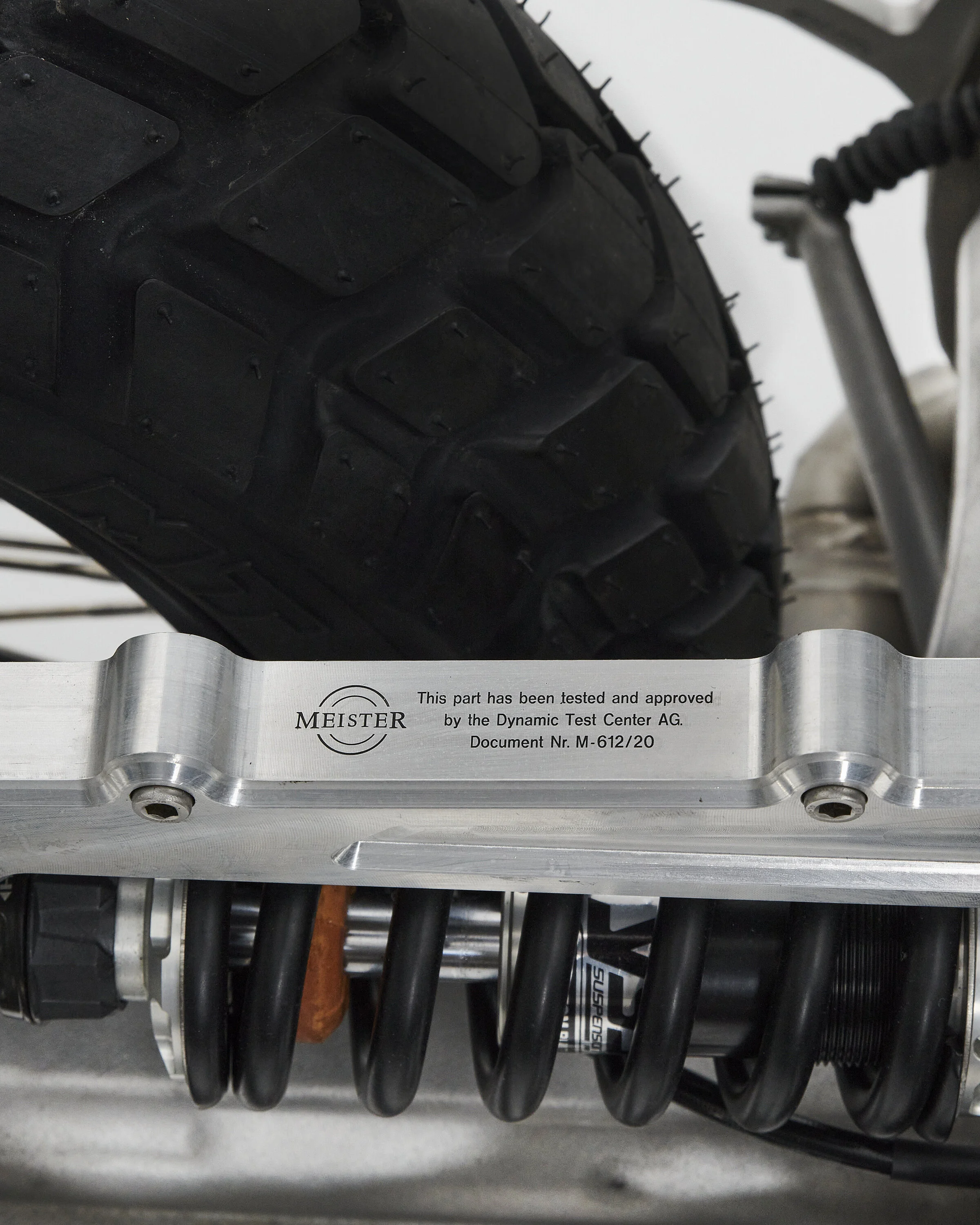

Homologation (DTC):
CHF1400 for the kit

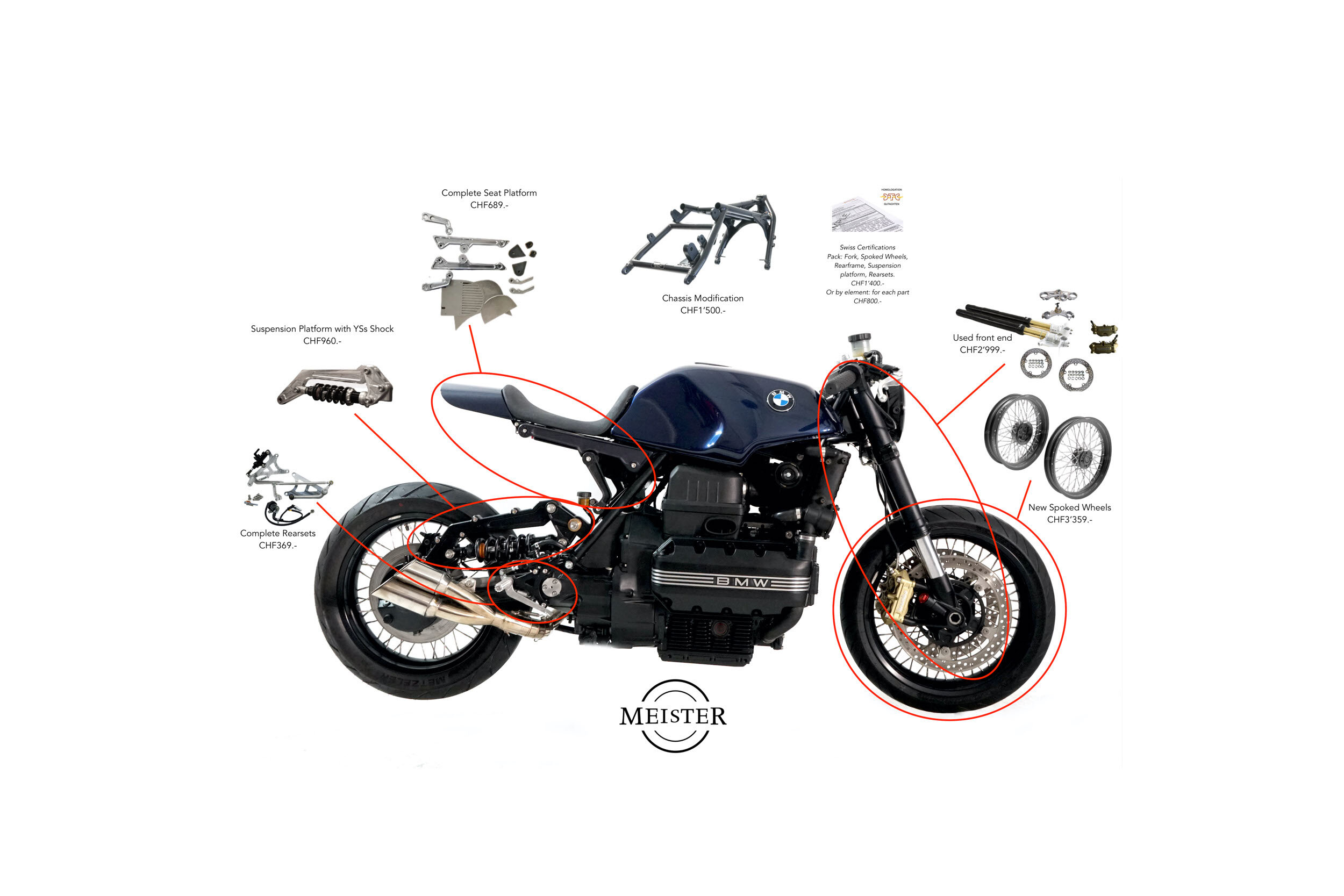

(This homologation is valide only if you buy all the modifications et services shown in the picture in one shot)
or
CHF800 per element (if you only need one element in the red circles in the picture)

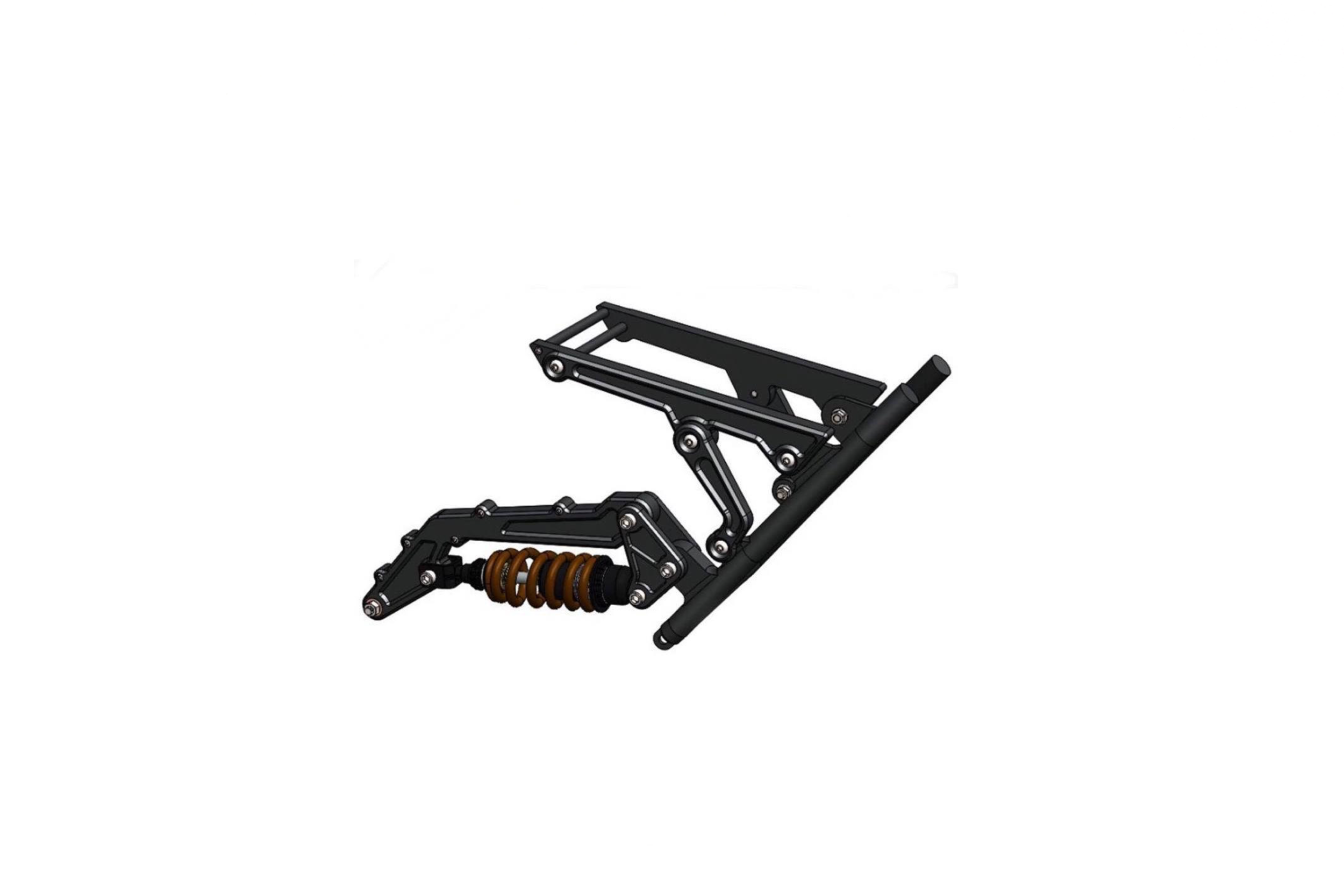

The retroride kit include:

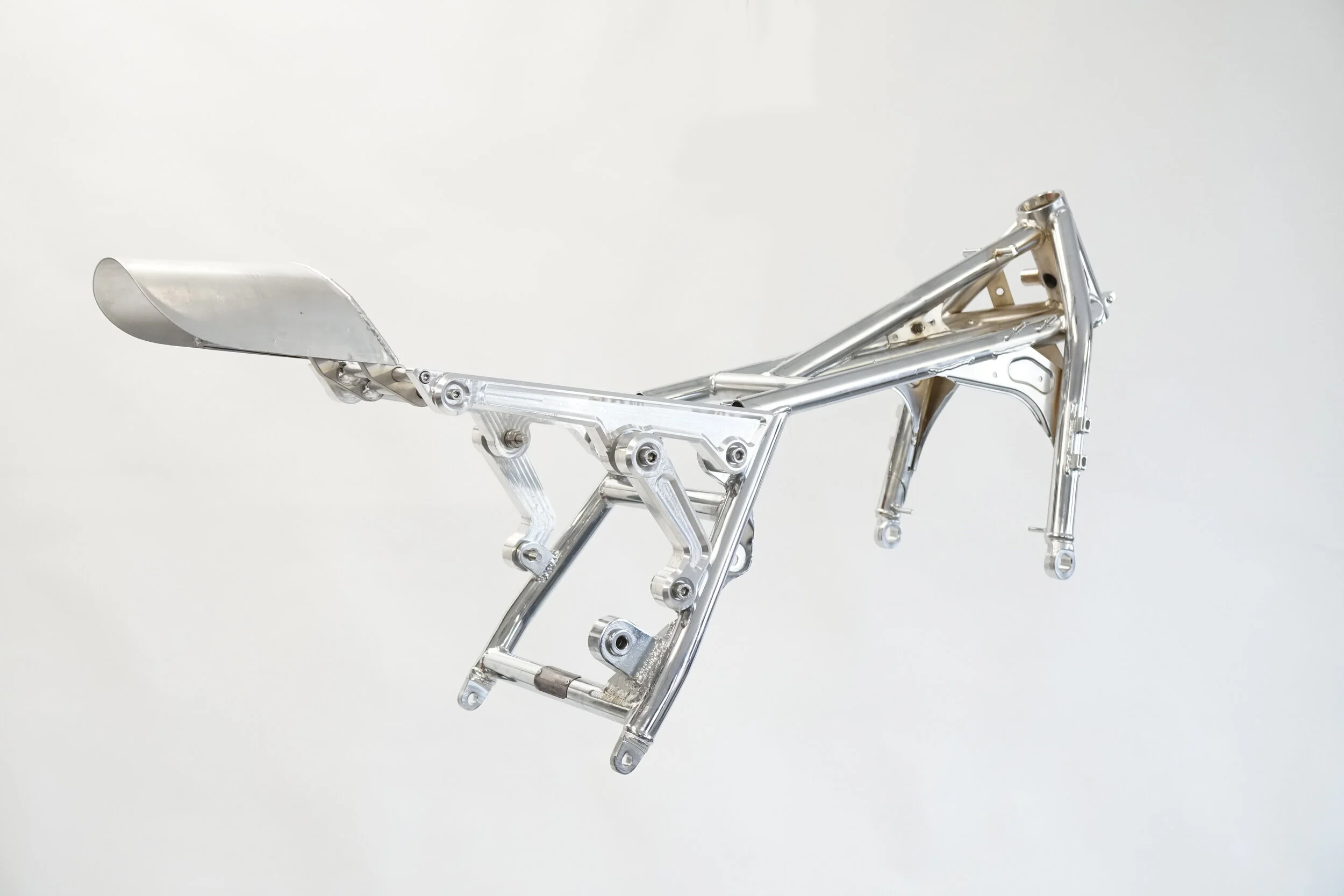

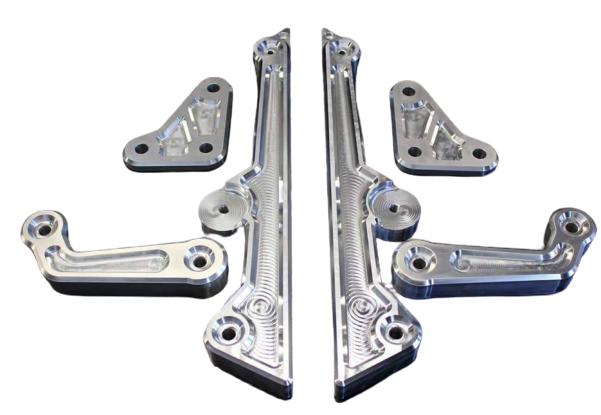

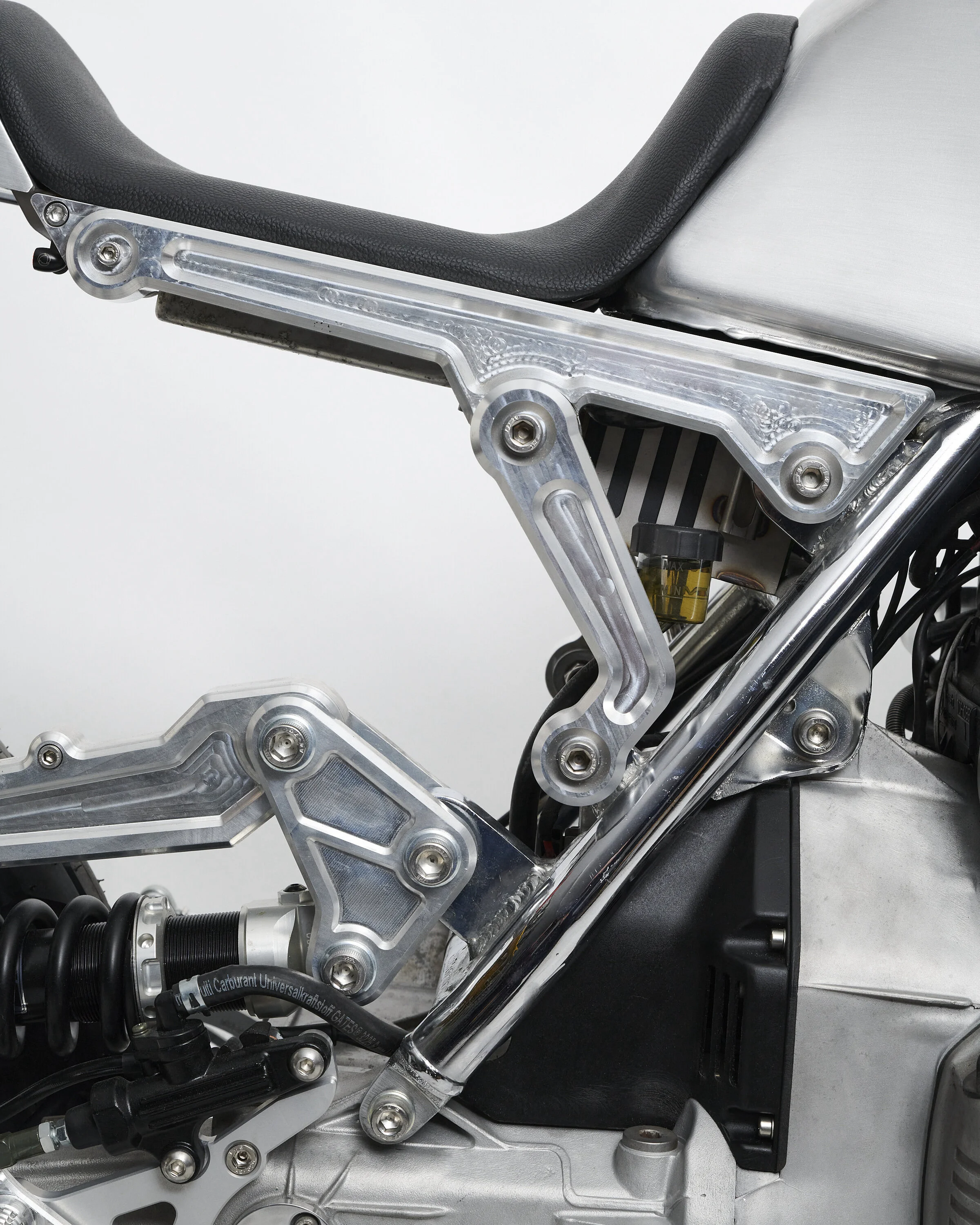

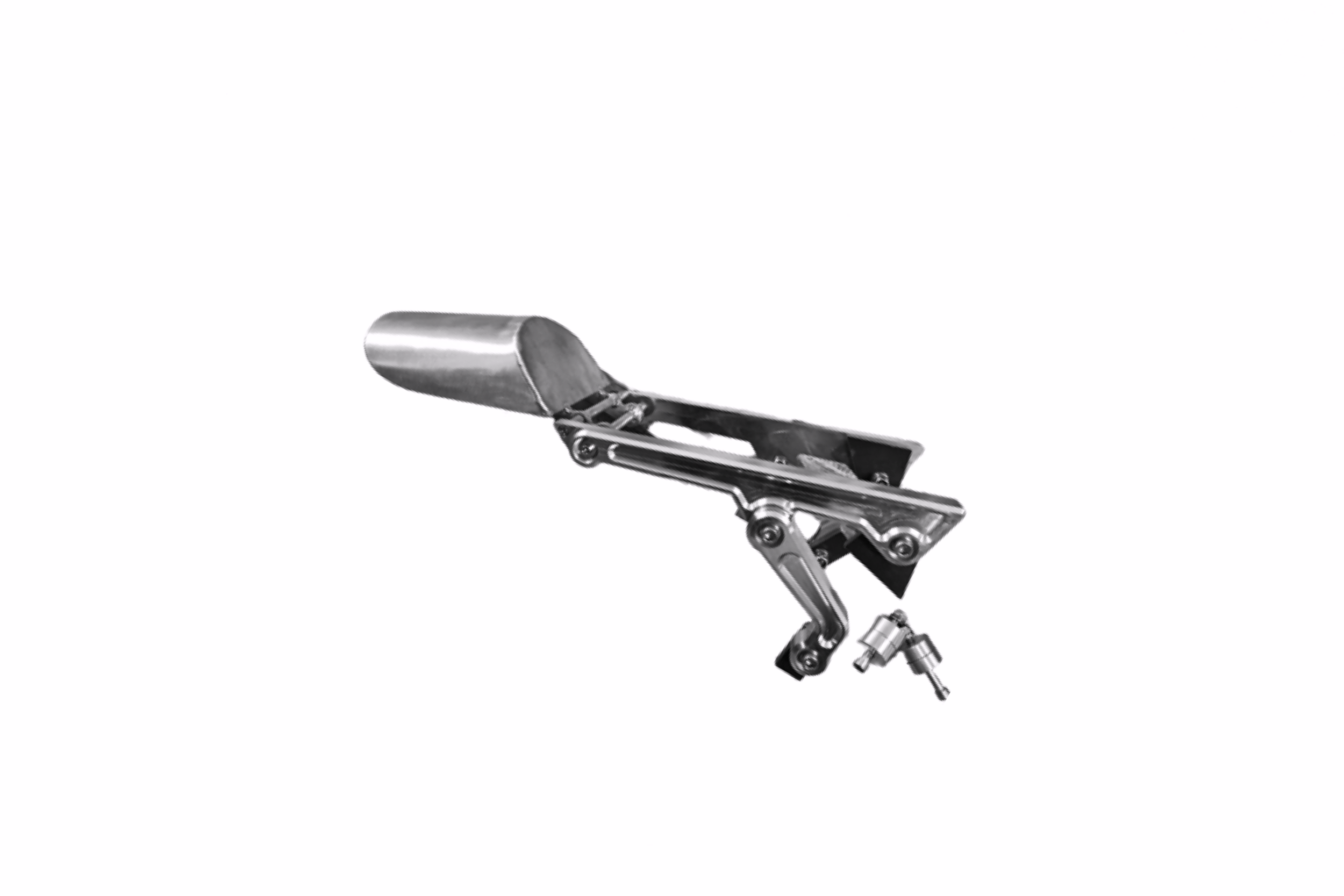

SEAT PLATFORM RETRORIDES CNC:
1x platform of seat left + right side (AL7075)
4x Pivot 2xleft + 2x right side (S235JR)
2x pipes, rear end
1x platform of rearend (exclude rearlight)
set of bolts,washers (stainless steel A2)
Seat not included

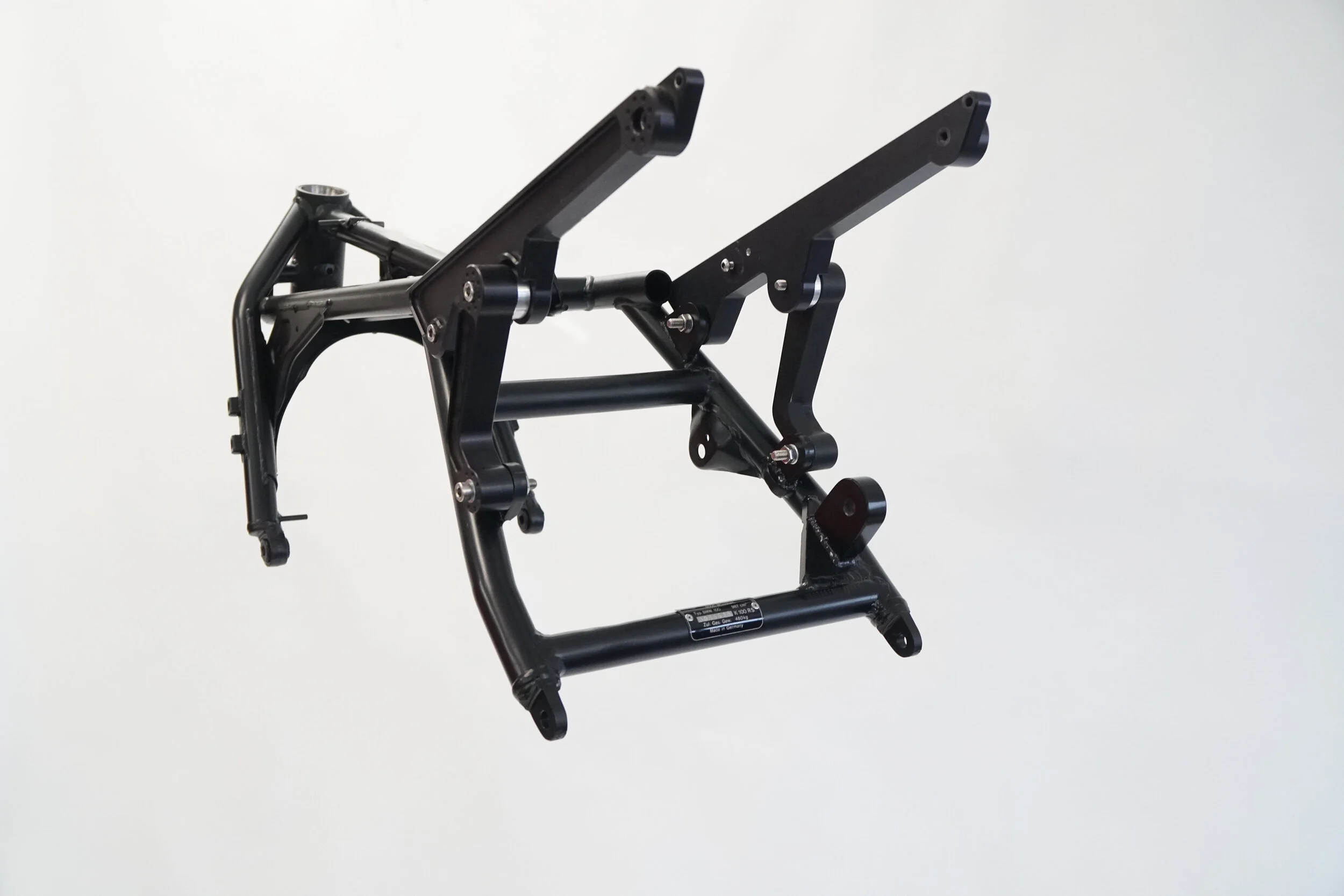

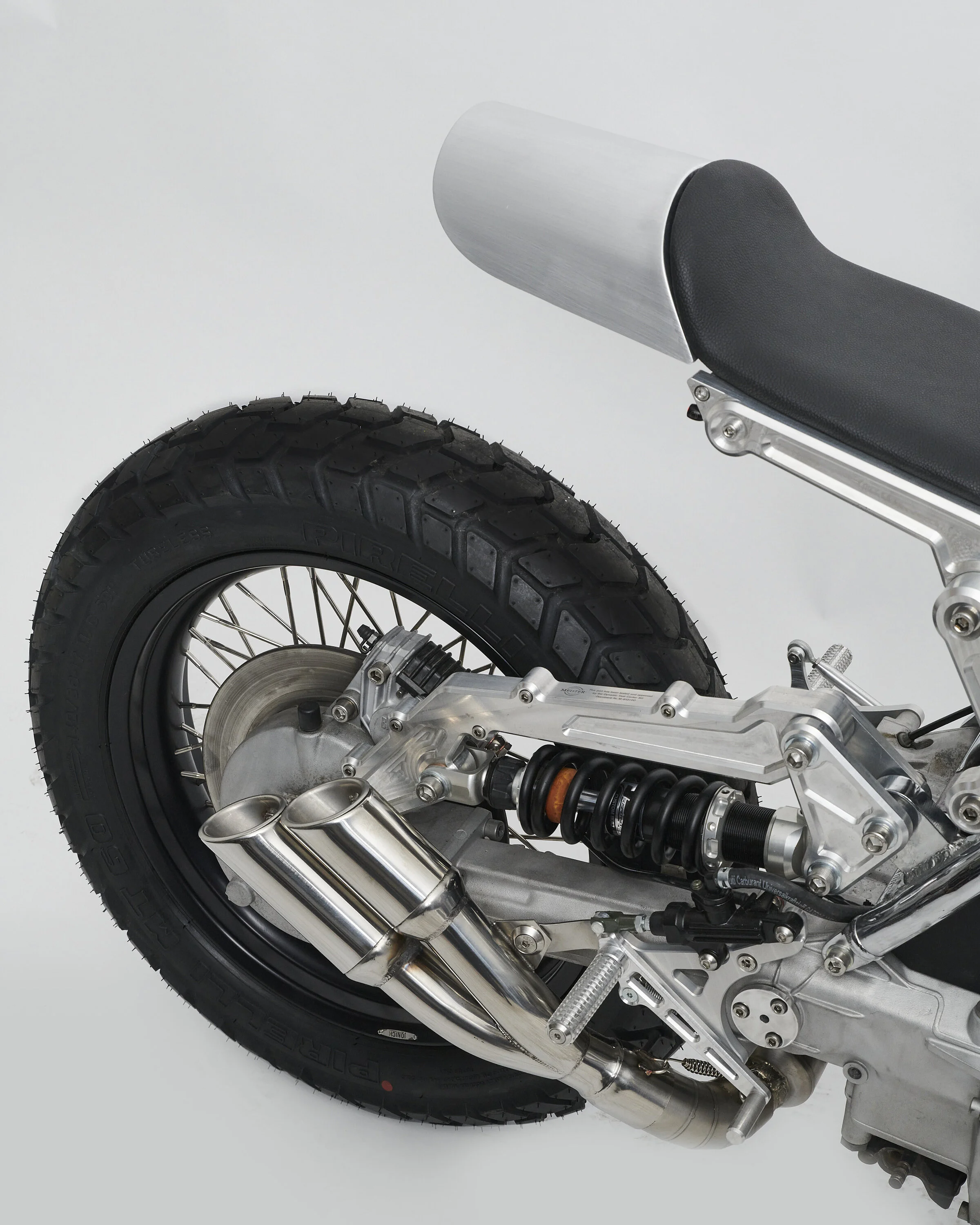

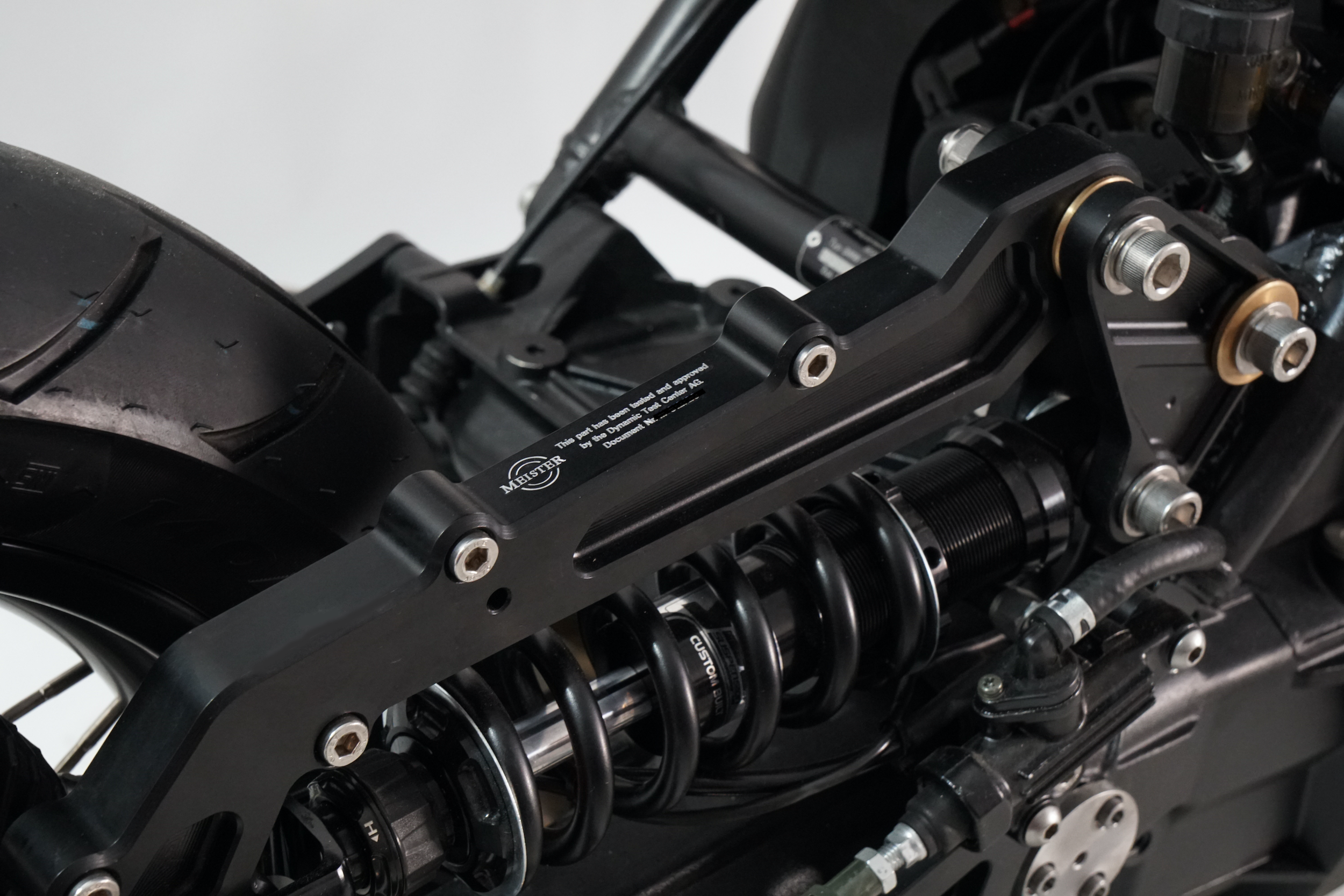

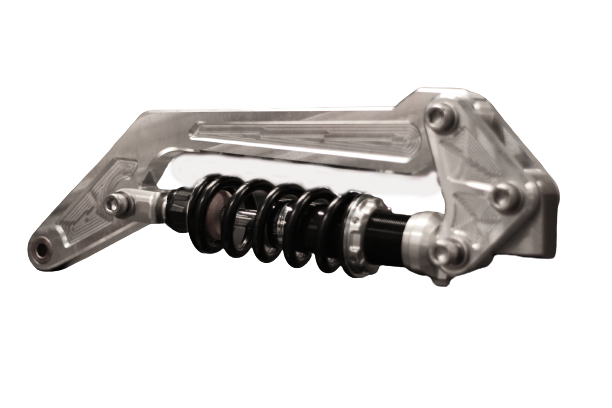

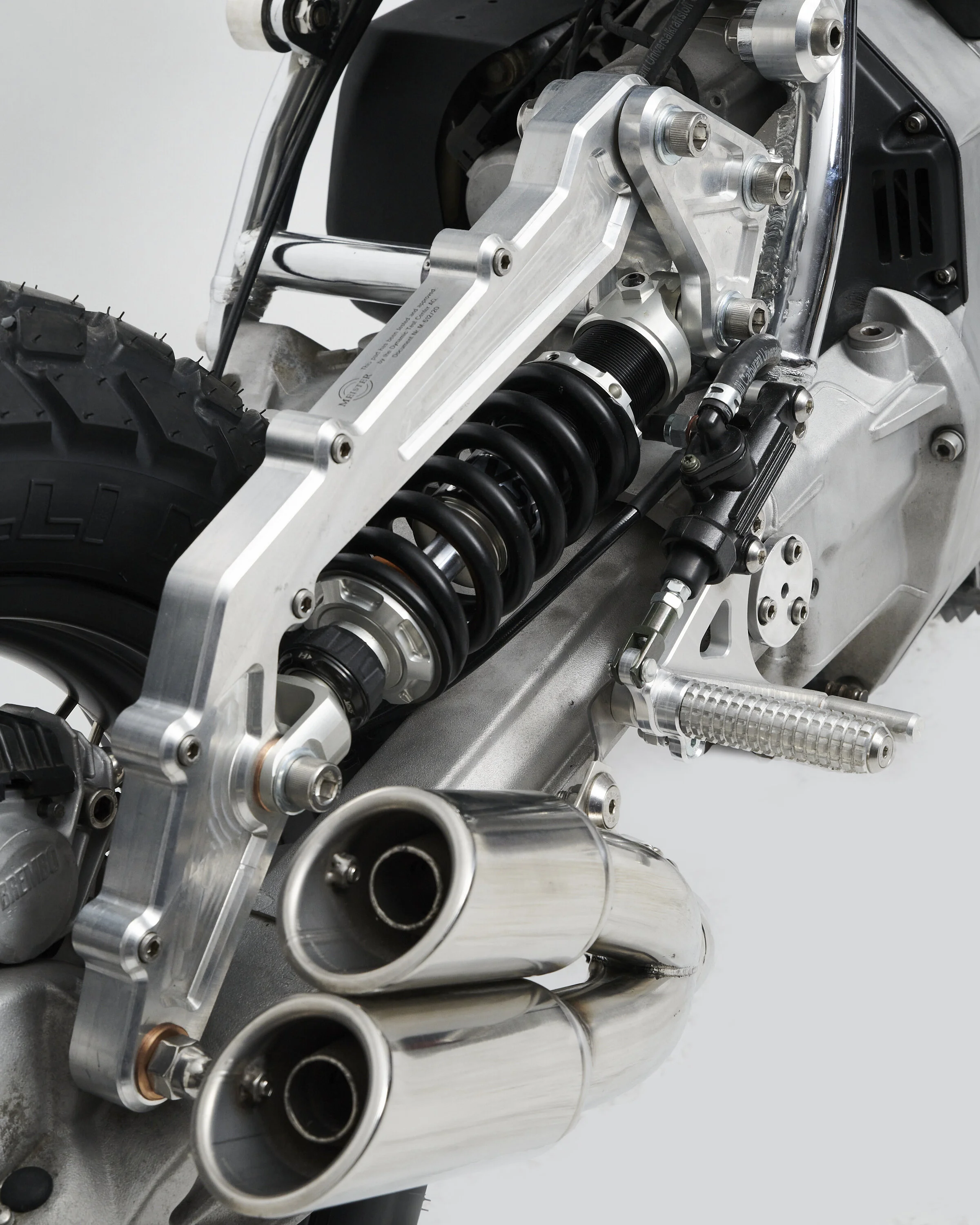

SUSPENSION PLATFORM RETRORIDES CNC:
Suspension platform CNC version, ready to polish or paint. Kit contain bronze bushes, bolts, screws and pivot.
1x YSS suspension
1x base platform (AL7075)
2x Holder (mounted with M12) (AL7075)
1x Pivot (S235JR)
1x Triangle (S235JR)
8x Bronze bushes (CuSn8)
set of bolts,washers (stainless steel A2)
Only for experts or professional bike builders.
Please be aware that we does not accept any responsibility for damages caused by incorrect use or installation of the product. We do not take any responsibility and we are not liable for any damage caused through use of products or services purchased here, be it indirect, special, incidental or consequential damages!
