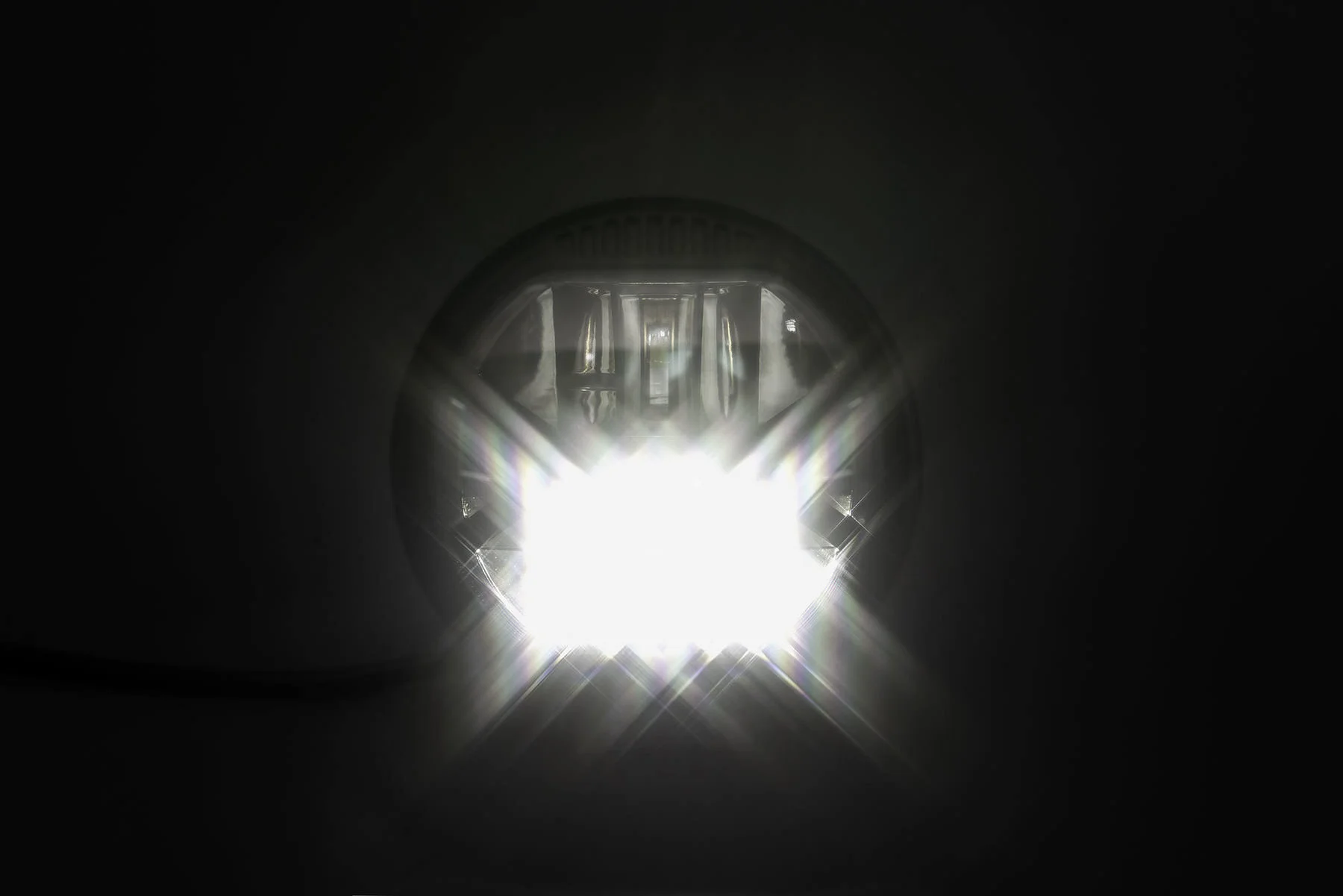

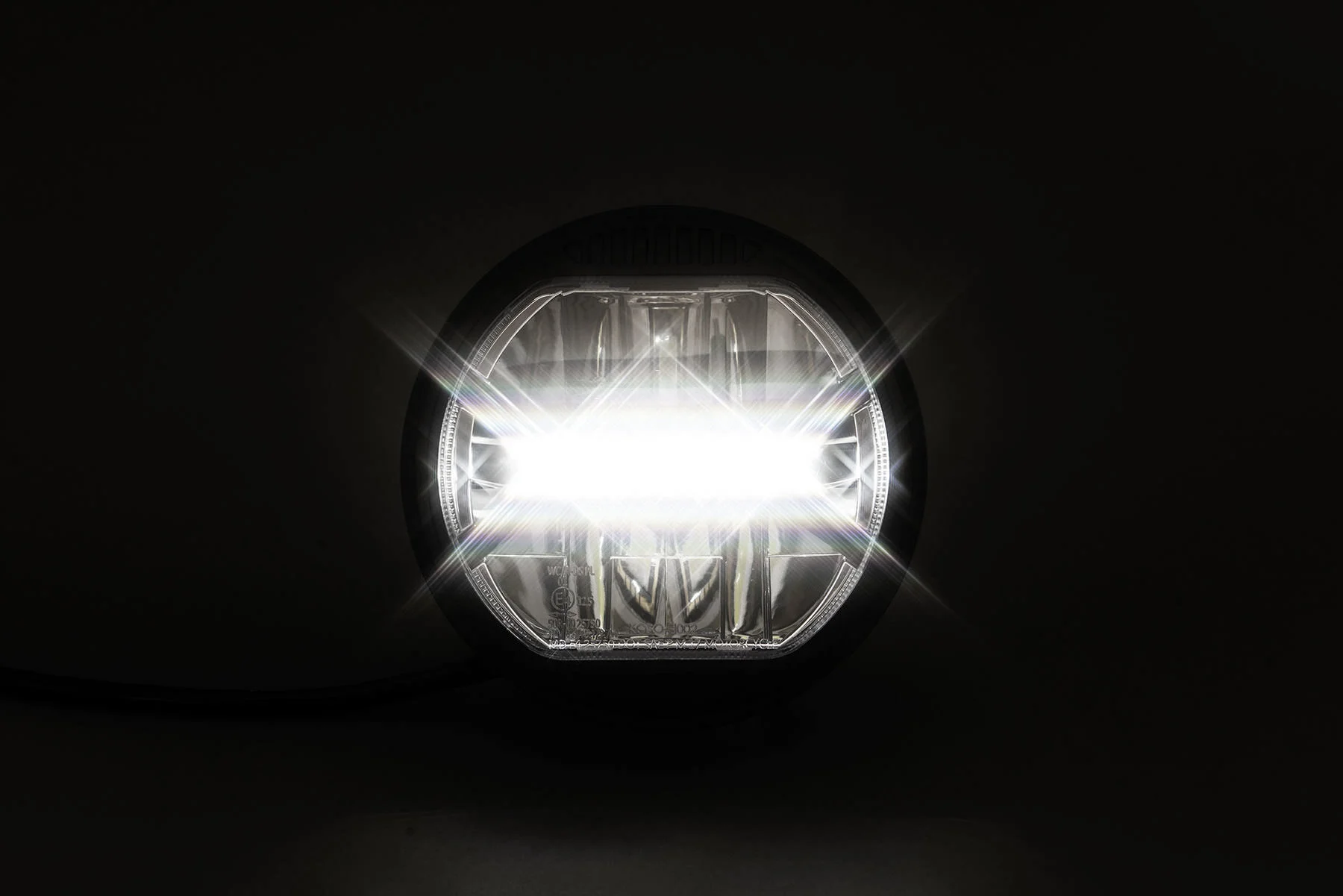

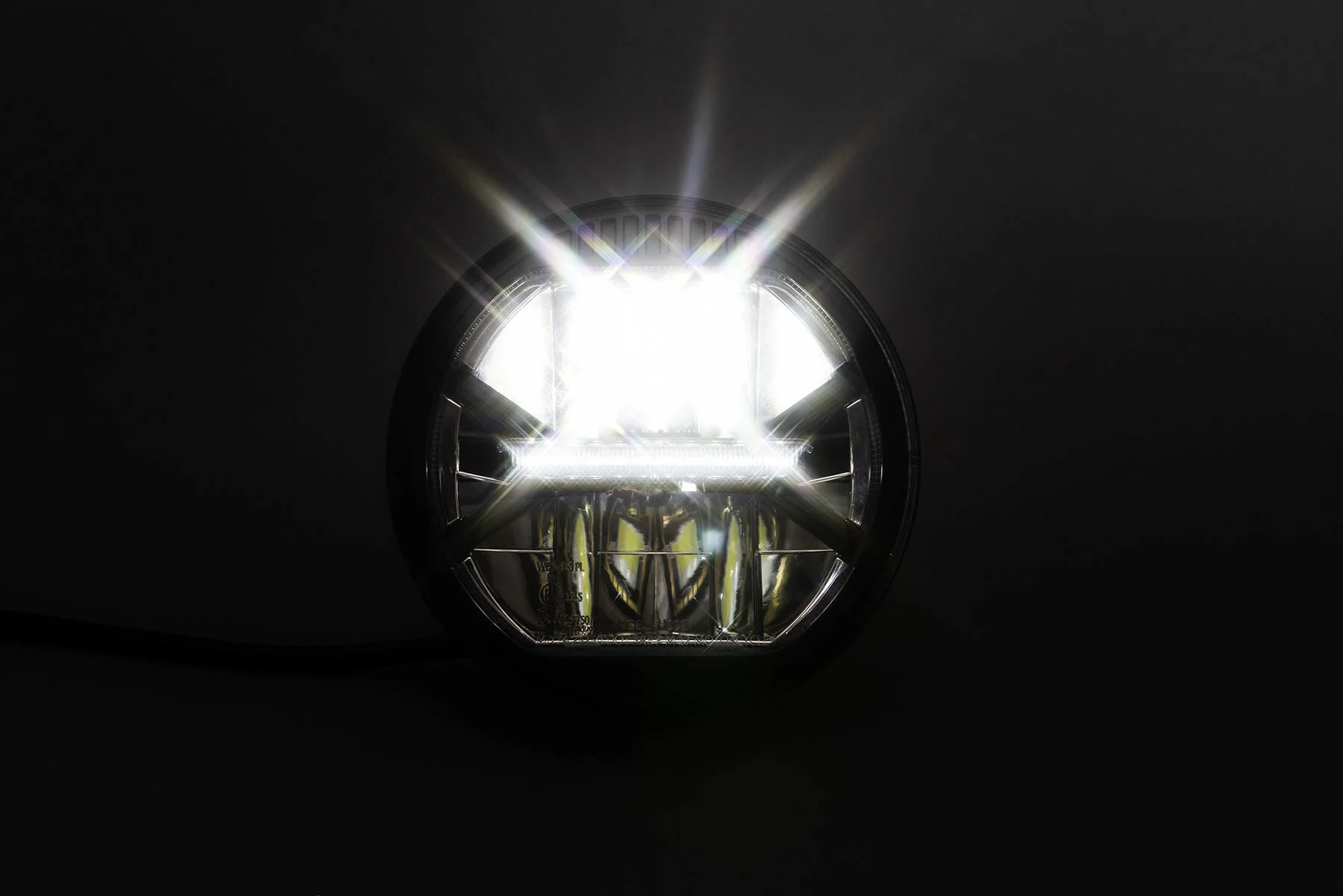

At night, this headlight floods the road ahead with light, far into the distance. In the daytime, the intensely white light is clearly visible to other road users - which makes an important contribution to your safety. The headlight surround is an aluminium ring with the stylish gazzini "g".

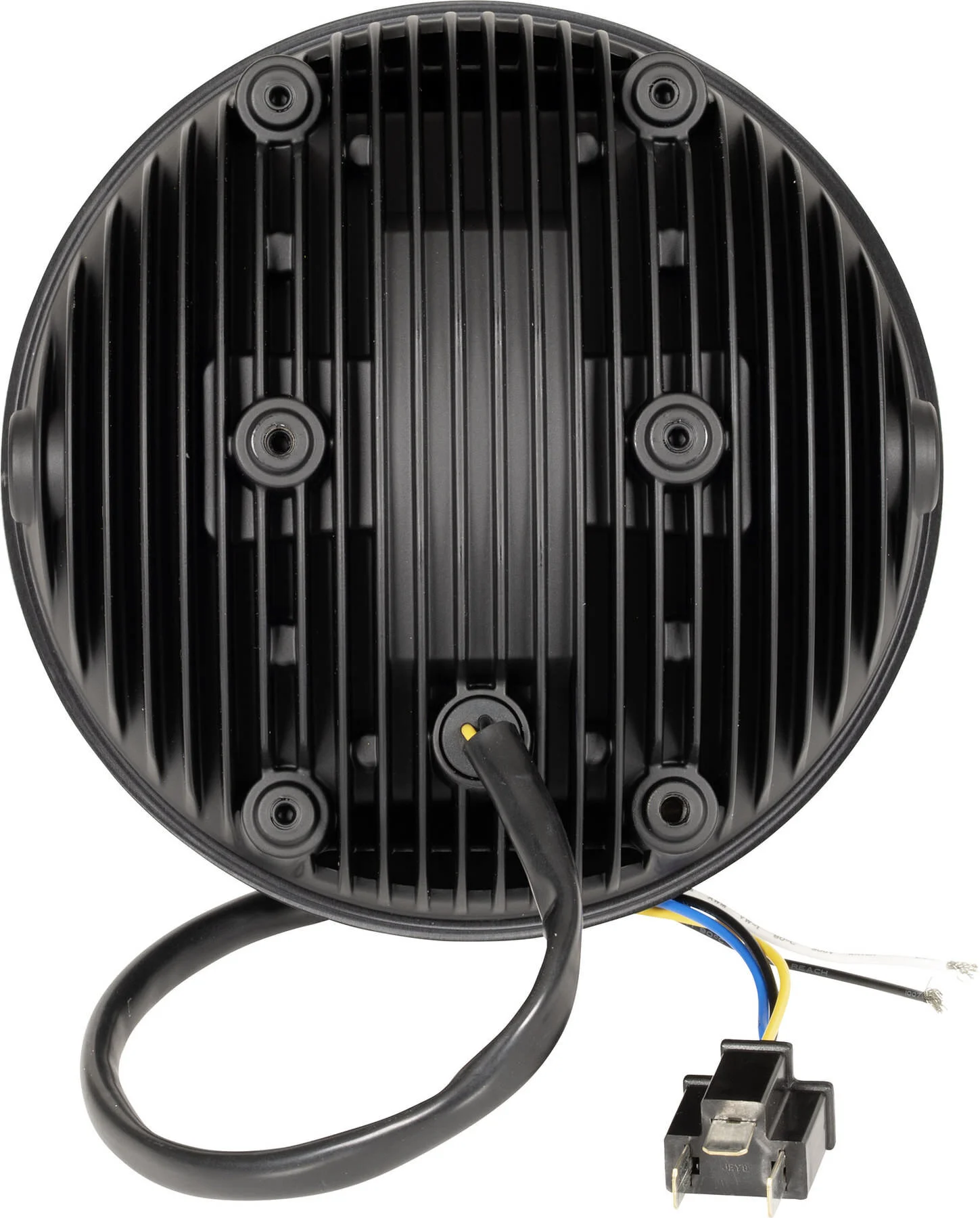

This gazzini LED headlight is ideal for mounting on motorcycles with limited installation space in the headlight area. For even greater flexibility, the gazzini headlight gives you both side and rear mounting options. M8 threads are provided on the right and left. On the back of the headlight, there are six M6 threads, two each at the top, middle and bottom. Available individually but also as a headlight unit for 7-inch housing

Dimensions:

• Housing diameter: 170 mm

• Depth: 84 mm

• Distance from mounting hole (centre) to end of housing approx. 48 mm

Connections:

• 3-pin combination plug

• yellow = low beam (+)

• blue = high beam (+)

• black = earth (-)

• extra cable: white = position light (+), black = earth (-)

• 12V

• Low beam: 9.7 W

• High beam: 15.1 W

• Parking light: 4.6 W

• E-approved
