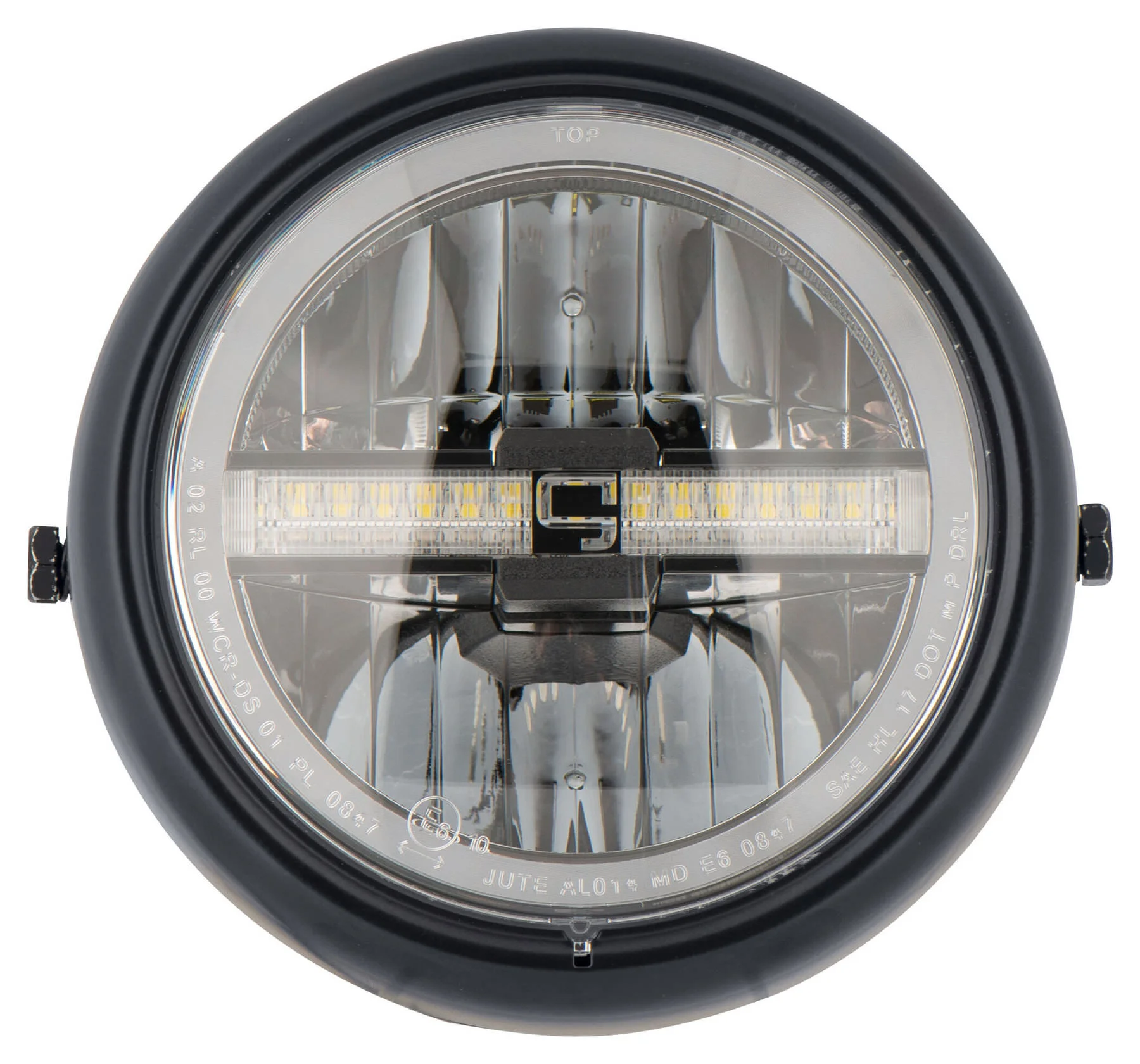

The gazzini "g" takes pride of place at the centre of the lens in this headlight version with daytime running light (DRL) and side mounting. When required, the built-in LEDs flood the road with light, while the daytime running light (DRL) emits a super-bright circle of light that will always get you seen.

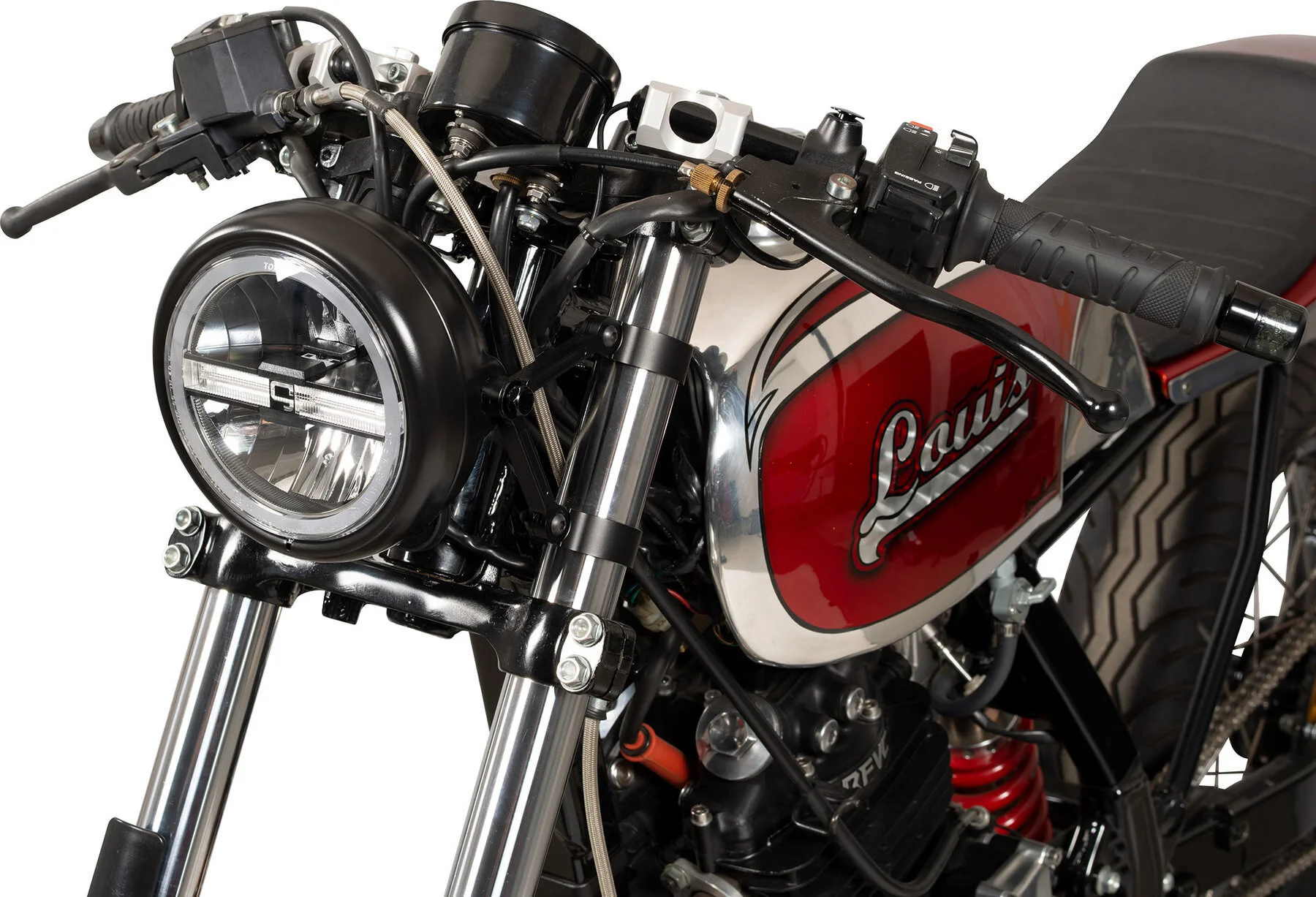

This gazzini headlight makes a fantastic visual feature on your retro, vintage, naked or custom bike or chopper.

Features: chromed reflector with daytime running light (DRL) and parking light ring
Bulb: LED
Lens: clear

Mounting:

• Side-mounting: M8 x 20

gazzini logo on the lens!

Dimensions:
Housing diameter:
Side mounting: approx. 158 mm
Bottom mounting: approx. 156 mm

Depth:
Side mounting: approx. 110 mm
Bottom mounting: approx. 113 mm

Connections:
Power: H4 connector
White = low beam (+)
Blue = high beam (+)
Green = earth (-)
Red = daytime running light (DRL)
Brown = parking light
E-approved

Sold individually

Important: If the motorcycle has not been equipped with a daytime running light previously, the DRL must be connected so that it is activated automatically when the ignition is switched on. The DRL must switch off automatically when the low beam or high beam is switched on.
